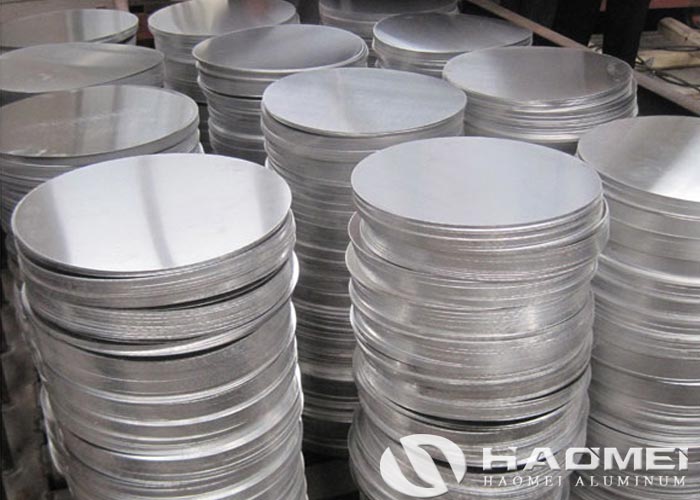

Aluminium Circles Deep Drawing Quality

Aluminium circles deep drawing quality are aluminum materials that can be processed into complex shapes through the deep-drawing process (deep-drawing forming) without cracking or wrinkling. Aluminum circles with good deep drawing quality are typically those aluminum alloys that maintain good shape, smooth surfaces, and no cracks or defects during the deep drawing process. Deep drawing is the process of deforming a metal material under pressure to form complex shapes, which typically require high ductility, uniform grain structure, and good plastic deformation. Aluminum circles are widely used in several industries due to their light weight and malleability.

Characteristics of aluminium circles deep drawing quality:

- Good plasticity: Aluminum circles suitable for deep drawing should have excellent plasticity and be able to withstand large deformations without cracking during the deep drawing process.

- Uniform thickness: The thickness of the aluminum discs should be uniform to ensure even distribution of forces during deep drawing and to avoid weak points.

- Excellent surface quality: The surface should be smooth and free of obvious scratches, bubbles or other defects that could affect the appearance and performance of the finished product.

- Appropriate Strength: Although good plasticity is required, the strength of the aluminum circles should also be moderate to ensure the stability and durability of the finished product in the process of use.

- Good workability: It should be easy to carry out further processing such as cutting, welding and surface treatment.

The following are common alloys of aluminium circles deep drawing quality:

1. 1xxx series (pure aluminum)

- Typical alloys: 1050, 1060, 1070, 1100

- Characteristics:

Purity ≥ 99%, excellent ductility, suitable for simple deep-drawn parts.

Low strength, good corrosion resistance, commonly used in kitchenware food packaging, electronic components and other light products.

2. 3xxx Series (Aluminum-Manganese Alloys)

- Typical alloys: 3003, 3004

- Characteristics:

Manganese (Mn) is added to improve strength and corrosion resistance while maintaining good moldability.

3003 is widely used for kitchenware and lamps; 3004 is used for can bodies (requiring multiple deep-drawing).

3. 5xxx Series (Aluminum-Magnesium Alloys)

- Typical alloys: 5052, 5083

- Features:

Containing magnesium (Mg), higher strength than 1xxx and 3xxx series, both good moldability and corrosion resistance.

Suitable for medium strength deep-drawn parts such as automobile fuel tanks and ship parts.

4. 8xxx series (other alloys)

- Typical alloys: 8011, 8079

- Characteristics:

Contains iron (Fe) and silicon (Si), designed for thin-walled containers (e.g., can lids).

Low cost, excellent formability, suitable for high speed stamping.

The key characteristics of deep-drawn aluminum circles:

- High plastic deformability:

High elongation (≥20%) and low yield strength reduce the risk of stamping cracking.

Annealed (O-state) materials are typically softer and suitable for deep drawing.

- Homogeneous microstructure:

Fine, uniform grains reduce localized stress concentrations and avoid wrinkling or fracture.

- High surface quality requirements:

The surface needs to be smooth and free of defects to prevent scratches to the mold or product during stamping.

- Processing adaptability:

Good lubricating properties, reduce stamping friction; part of the alloy can be followed by heat treatment to strengthen.

Overall, aluminium circles deep drawing quality have a wide range of applications in several industries, where their excellent plasticity and processability make them ideal. Choosing the right type of aluminum alloy and processing is key to ensuring deep-drawn quality. The complexity and performance requirements of different deep-drawn processes can be met by a rational choice of alloy and state (e.g. O-state).
