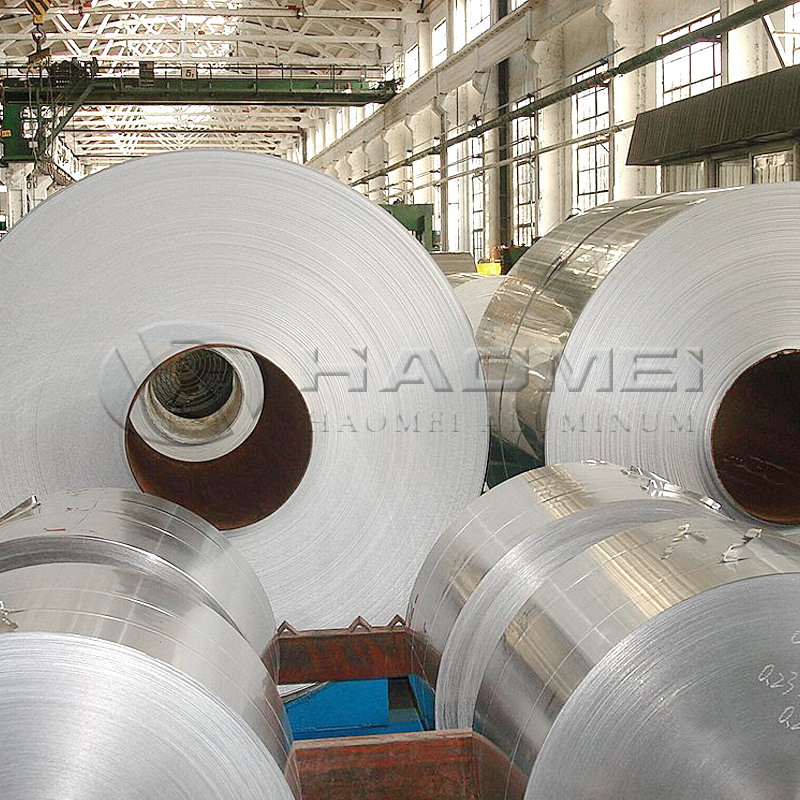

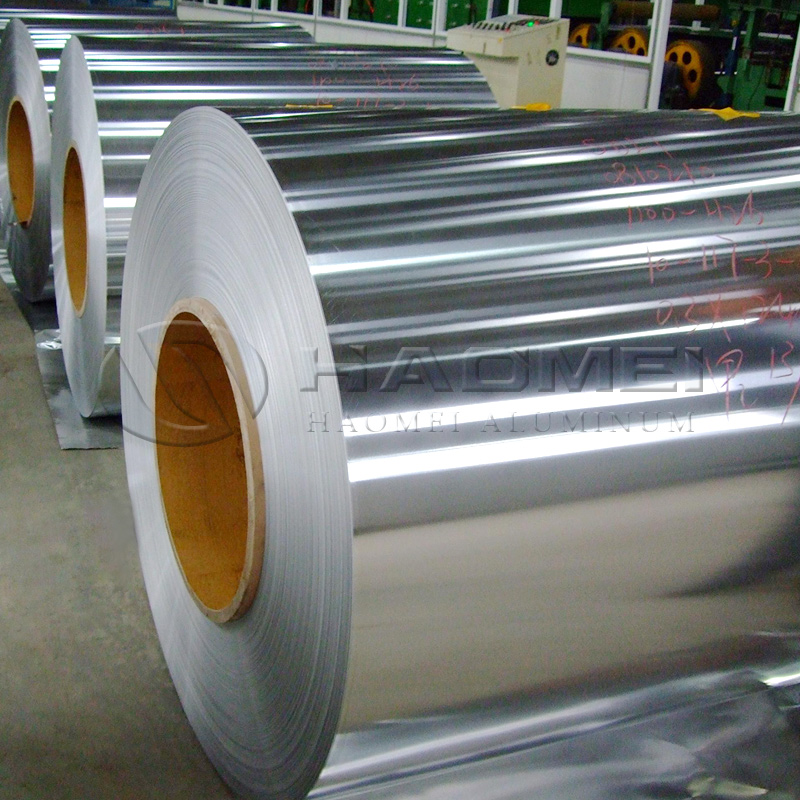

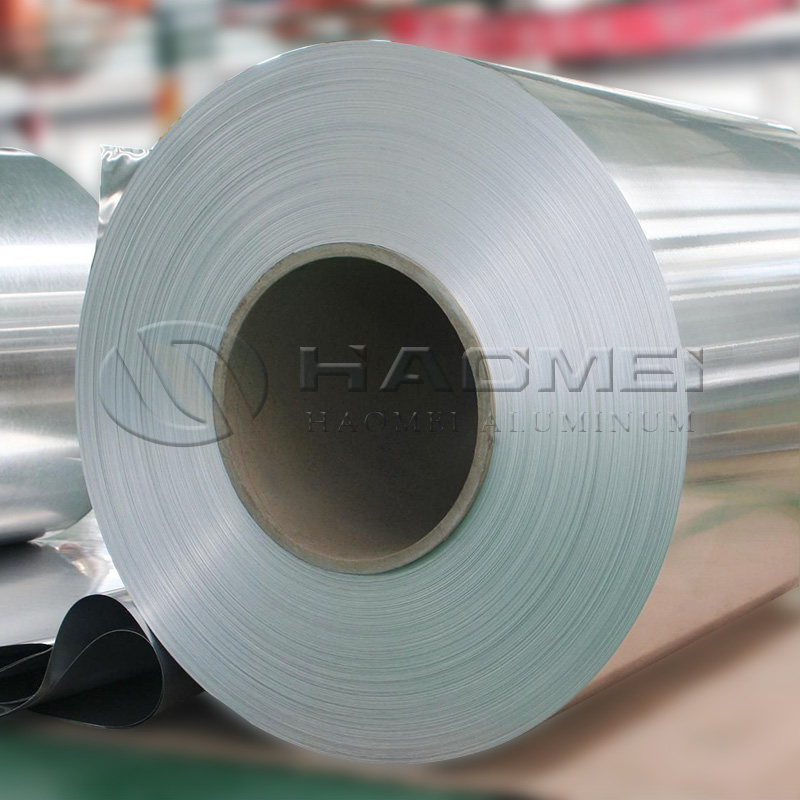

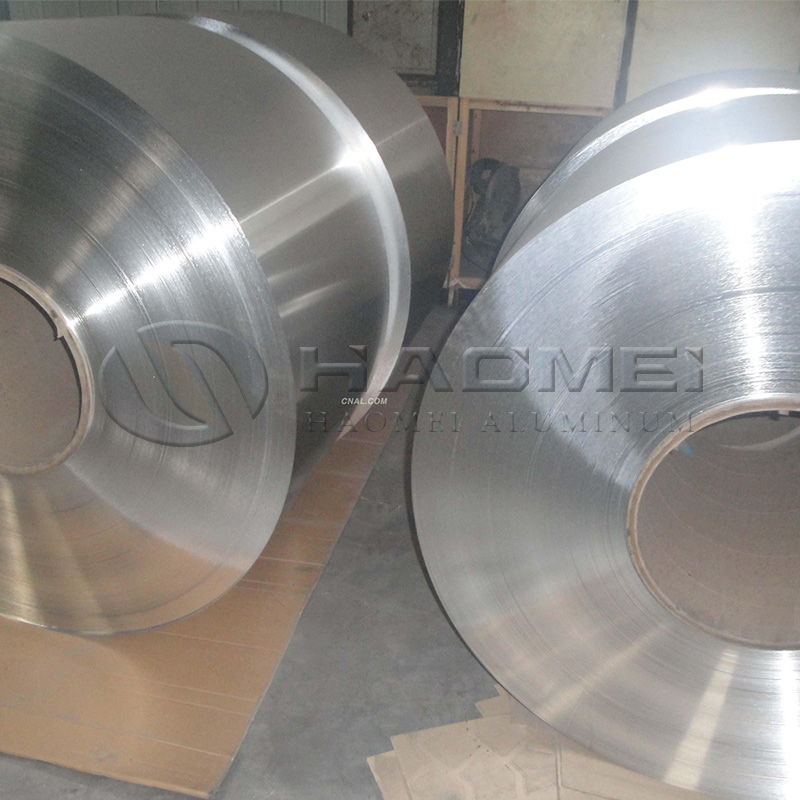

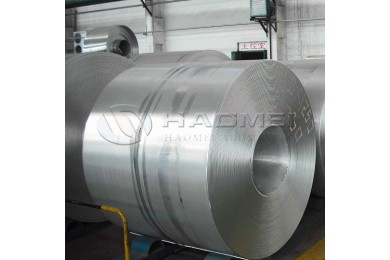

1000 Series Aluminum Coil
Full Data
This series aluminum coil provided by Mintai includes 1100, 1050 and 1070 series.
♦ material:1050 1060 1070 1100 1200 1235 etc.
♦ temper:h16 h18 h24 h32
♦ thickness:0.2-1.0mm
♦ width:30-1300mm
♦ packing:eye to wall,eye to sky
♦ use: roof ,celling,computer,light channel ,ledect.
♦ Tensile strenth:55-95Mpa
Applications of 1100 Series Aluminum Coil
This series aluminum strip can be used to process parts which require good forming property and high anti-corrosion, but do not require high strength, such as chemical products, devices and storage containers used in the food industry, heat exchangers, welding parts, etc.
Feature of 1000 Aluminum Coil
Low strength aluminum alloy has excellent corrosion resistance and satisfactory anodizing and conversion coating finishing characteristics. It is unmatched by any other commercial aluminum alloy in workability. Readily to welding, brazing, and soldering. Machinability is poor and tends to be "gummy". Non-heat treatable.
|
TOLERANCE |
|||||
|
Major Brand |
A1060(O) A1050(O) |
||||
|
Thickness |
0.2-0.4 |
0.4-0.8 |
0.9-1.1 |
1.2-1.6 |
1.8-2.0 |
|
tolerance |
±0.01 |
±0.015 |
±0.02 |
±0.025 |
±0.03 |
|
Width |
<100 |
100-200 |
201-500 |
501-1250 |
>1250 |
|
tolerance |
±0.1 |
±0.2 |
±0.2 |
±1 |
±2 |
|
BURR AND COLLAPSE |
|||||
|
The width of aluminum belt |
burr’s height |
collapsed side’s height |
|||
|
<0.2 |
0.01 |
≥0.05-0.1 |
|||
|
0.2-1.0 |
0.015 |
||||
|
1.1-1.5 |
0.02 |
||||
|
>1.6 |
0.03 |
||||
|
MECHANICAL PROPERTY |
|||||
|
U.T.S: 60-95N/mm2 |
Elongation: >25% |
||||
|
Density in 20°C :2.703kg/dm3 |
Max.resistance in 20°C:≤0.02825Ωmm2/m |
||||
