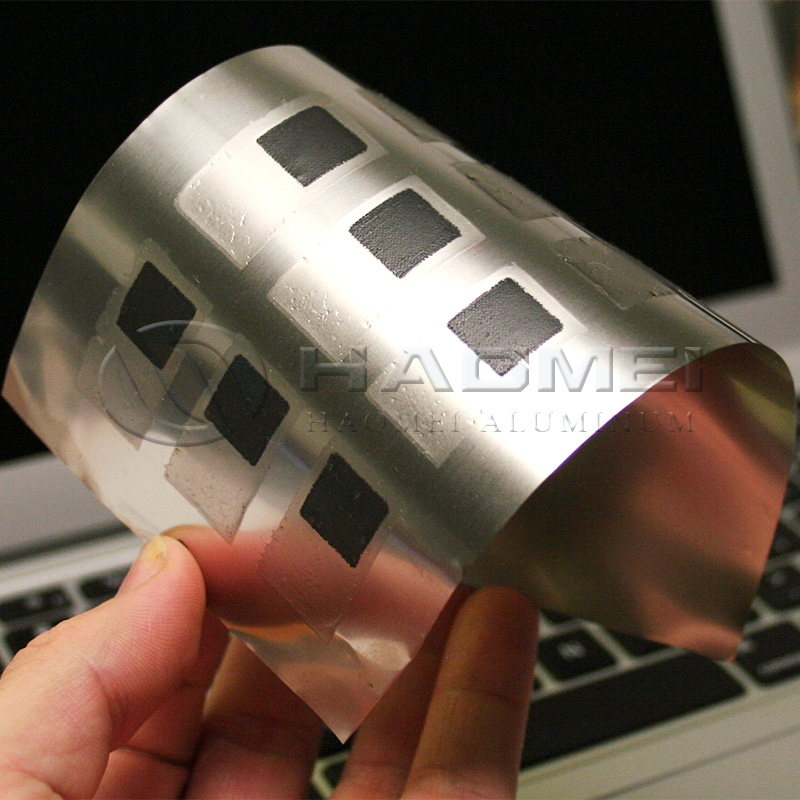

Aluminum Battery Foil
Temper: H18
Gauge: 0.012mm-0.04mm
Width: 600mm-1300mm
Surface finishing: One side bright, one side matte

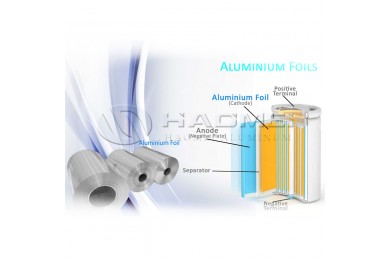

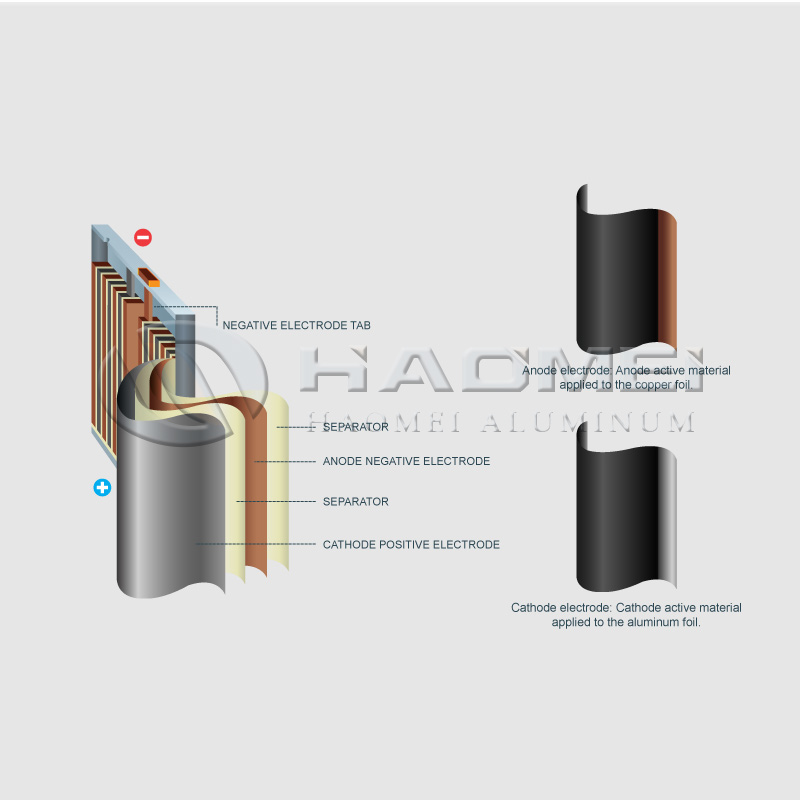

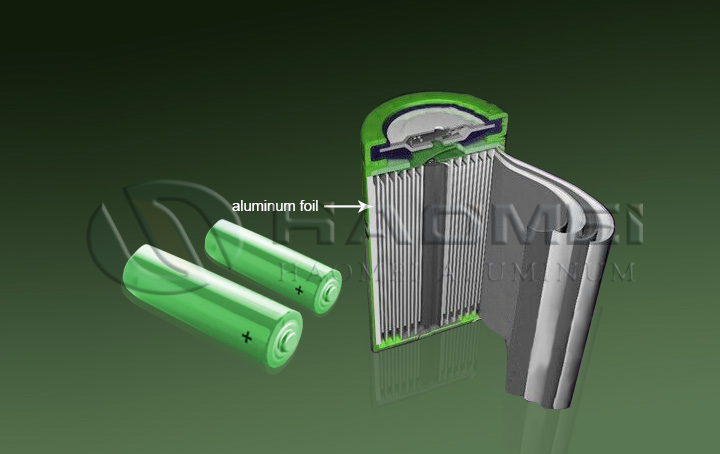

Accounting for over 90% of the electric conductivity and ∼90% of the mechanical strength of the electrode in lithium-ion batteries and capacitors, current collectors such as aluminum foil play an important role in determining the overall performance and cost-efficiency of a lithium-ion cell.
|
Alloy |
Temper |
Thickness |
Tensile test results |
|
|
H22 |
|
T.S.( Rm/N/m㎡) |
Elongation (A50mm/%) |
|
|
>0.03-0.050 |
125-160 |
10 |
||
|
>0.050-0.100 |
125-160 |
12 |
||
|
>0.100-0.150 |
130-160 |
14 |
||
|
>0.150-0.200 |
130-160 |
18 |
||
|
H24 |
>0.03-0.050 |
135-170 |
8 |
|
|
>0.050-0.070 |
135-170 |
10 |
||
|
>0.070-0.100 |
135-170 |
12 |
||
|
>0.100-0.150 |
135-170 |
15 |
||
|
>0.150-0.200 |
135-170 |
18 |
||
|
H22 |
>0.03-0.050 |
105-130 |
6 |
|
|
>0.050-0.100 |
105-130 |
10 |
||
|
>0.100-0.150 |
105-130 |
12 |
||
|
>0.150-0.200 |
105-130 |
14 |
||
|
H24 |
>0.03-0.050 |
125-145 |
5 |
|
|
>0.050-0.100 |
125-145 |
8 |
||
|
>0.100-0.150 |
125-145 |
10 |
||
|
>0.150-0.200 |
125-145 |
12 |
||
|
O |
>0.03-0.050 |
90-115 |
10 |
|
|
>0.050-0.100 |
90-115 |
14 |
||
|
>0.100-0.150 |
90-115 |
16 |
||
|
>0.150-0.200 |
90-115 |
18 |
||
