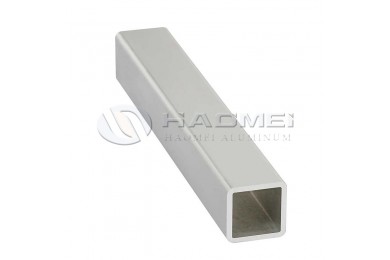

Aluminum Square Tube

Aluminum Square Tube

TAG: Aluminum Square Tube Aluminum
Product number:SN20180606144705157
Market Price:$2850.00
Buying price:$2680.00
Order Enquiry
Photos View
Description

Description of Aluminum+Square+Tube" target="_blank">Aluminum Square Tube

The 6061 aluminum square bar is an alloy that is made up of silicon and magnesium. It is highly corrosion resistant – the highest in the heat treated aluminum category. This part has great weldability, with the ability to be welded using any standard method. It can also have cold working done easily when in the annealed state. Annealing this metal should be done at 775 degrees F for between two and three hours, followed by a drop in temperature every hour by 50 degrees F, until 500 degrees F is reached.

6061 alloys can be cold worked using conventional methods, which allow you to tap, deep draw, stamp, drill, cut or bend this metal. The applications this alloy can be used for include base plates, valve parts, machine parts, brackets, heavy duty structures and marine fittings. Many different industries use 6061 aluminum products.

To help improve the corrosion resistance of this product, anodizing can be done or other coatings can be applied to the surface. It has great mechanical properties, which allows it to be machined. It has a high finish once machined. Forging is another way this product can be formed, which is recommended at temperatures between 750 and 900 degrees F. The range of heat that should be used for hot working is between 500 and 700 degrees F.

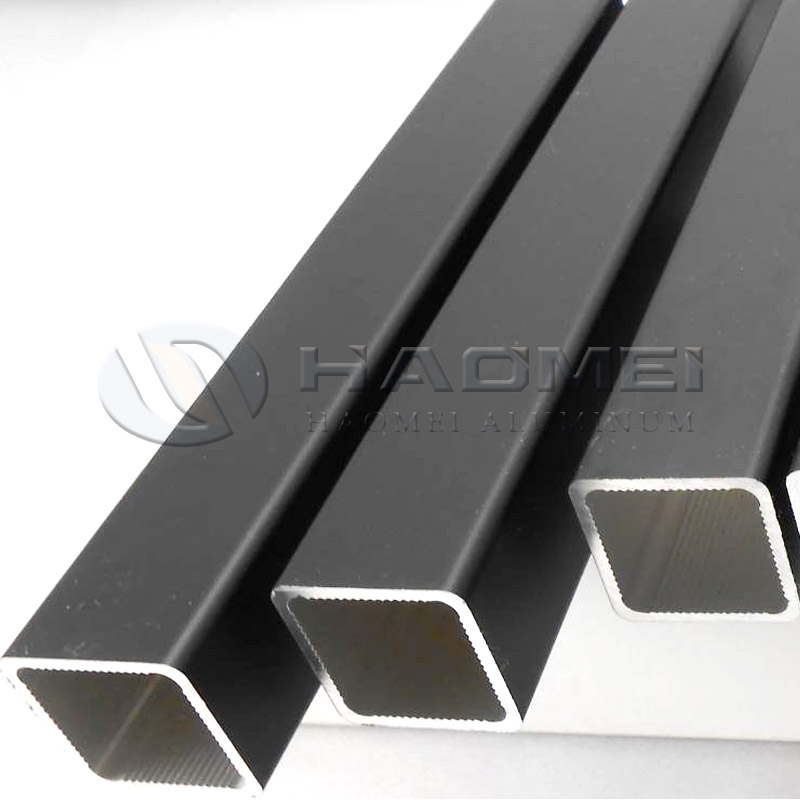

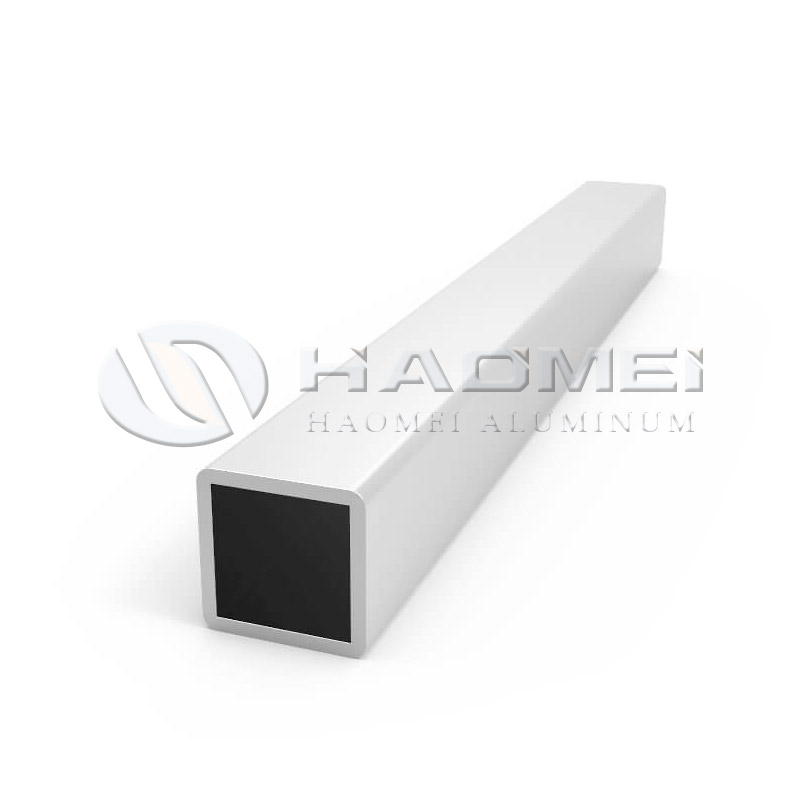

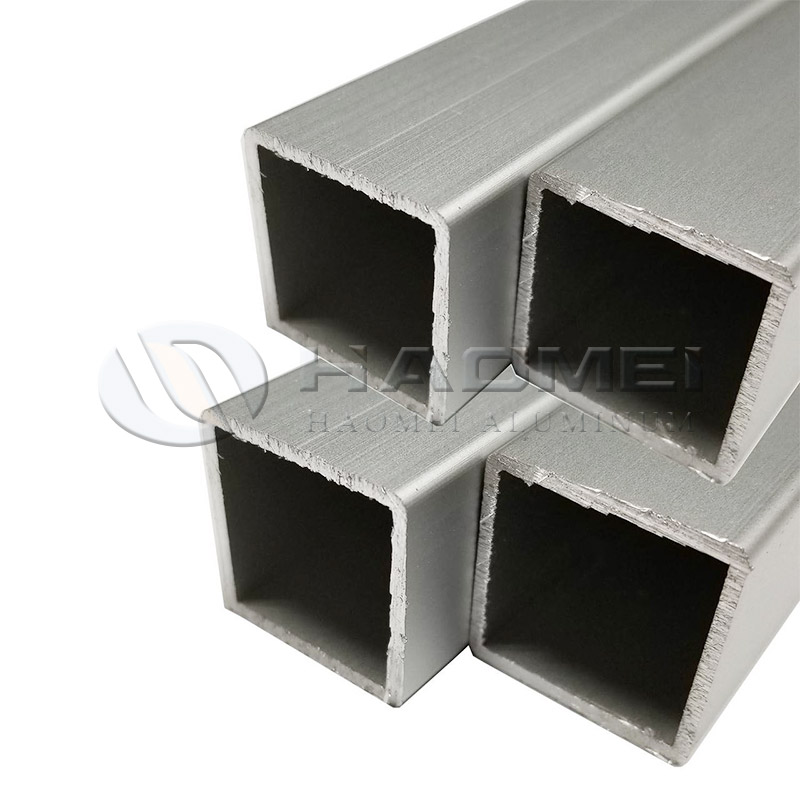

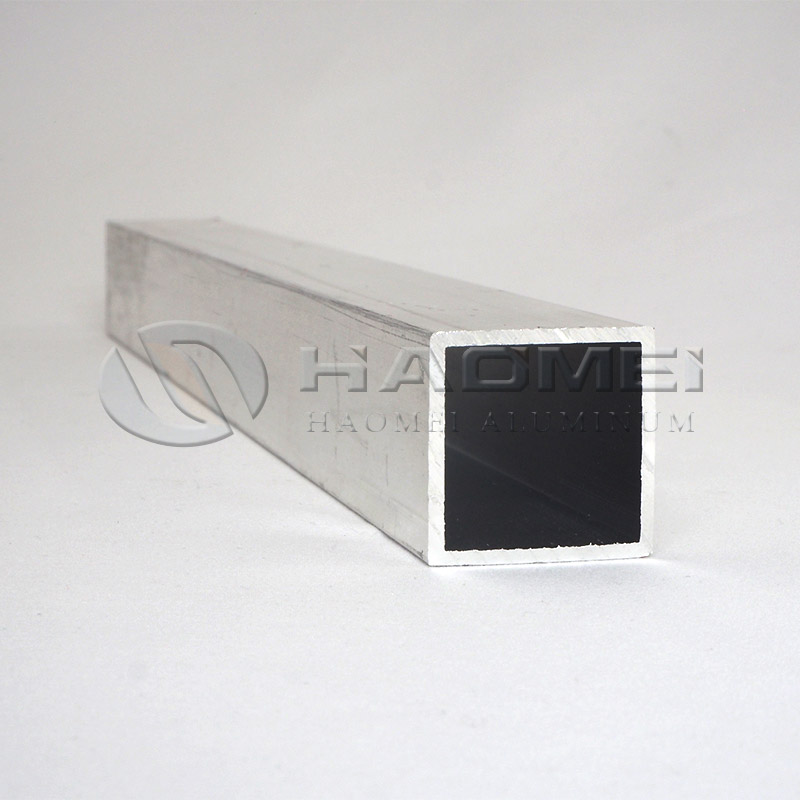

Aluminum Square Tube

Grade

1060, 2024, 3003, 5052, 5083, 6063, 6061, 7075 etc.

Temper

O, H112, H24, T3, T4, T5, T6 etc.

Round Tube Size ID

φ5-φ500mm

Square Size

8mmx8mm-200mmx300mm

Wall Thickness

0.25mm-50mm

SQUARE ALUMINUM TUBING PROCESS FLOW

1. To find if we have the molds you need

2. To design the required molds and fet confirmation from customer

3. To open molds

3. To test mold production and inspect the product

4. To produce the aluminum tube
