Product Description
According to different usage of the Aluminum Strip,the alloy is differently from 1050 1060 1070 1350.The temper of aluminum strip widely used is O,there are also full hard H18,half hard H24.The purity of Al is above 99.5% and it is also called pure aluminum strip.
Aluminum has better electrical conductivity and be next to copper.But the cost of aluminum is much less than copper.There is obvious trend that aluminum is replacing copper in a long run.

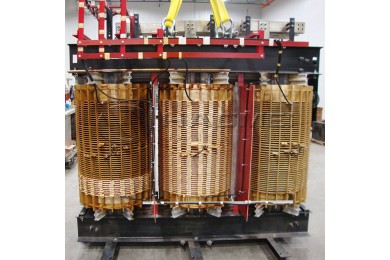

Dry type transformer used aluminum strip
Alloy: 1050 1060 1070 1350
Temper: O
Thickness: 02mm-3.0mm
Width:20mm-1650mm
Quality :Mill finish,without scratches,the eage can be made of face-off(round corners or round edge), without burrs,excellent than GB standard.The resistivity is less than 0.028.
|
1050 Aluminium foil strip Chemical composition(%) |
|||||||||
|
Element |
Al |
Si |
Fe |
Mg |
Zn |
Mn |
Ti |
Cu |
V |
|
Standard Value |
≥99.5 |
0.0431 |
0.203 |
0.0013 |
0.0093 |
0.0104 |
0.0200 |
0.0022 |
0.0039 |
|
1060 Aluminium foil strip Chemical composition(%) |
|||||||||
|
Element |
Al |
Si |
Fe |
Mg |
Zn |
Mn |
Ti |
Cu |
V |
|
Standard Value |
≥99.6 |
0.0431 |
0.203 |
0.0013 |
0.0093 |
0.0104 |
0.0200 |
0.0022 |
0.0039 |
|
1070 Aluminium foil strip Chemical composition(%) |
|||||||||
|
Element |
Al |
Si |
Fe |
Mg |
Zn |
Mn |
Ti |
Cu |
V |
|
Standard Value |
≥99.7 |
0.0431 |
0.203 |
0.0013 |
0.0093 |
0.0104 |
0.0200 |
0.0022 |
0.0039 |
|
1350 Aluminium foil strip Chemical composition(%) |
|||||||||
|
Element |
Al |
Si |
Fe |
Mg |
Zn |
Mn |
Ti |
Cu |
V |
|
Standard Value |
≥99.5 |
0.0431 |
0.203 |
0.0013 |
0.0093 |
0.0104 |
0.0200 |
0.0022 |
0.003 |

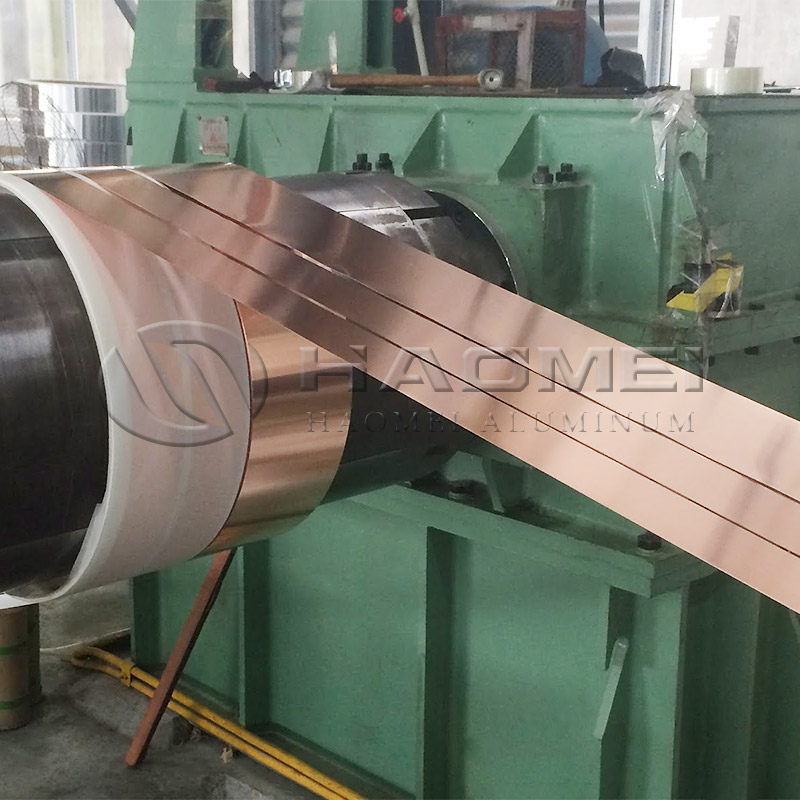

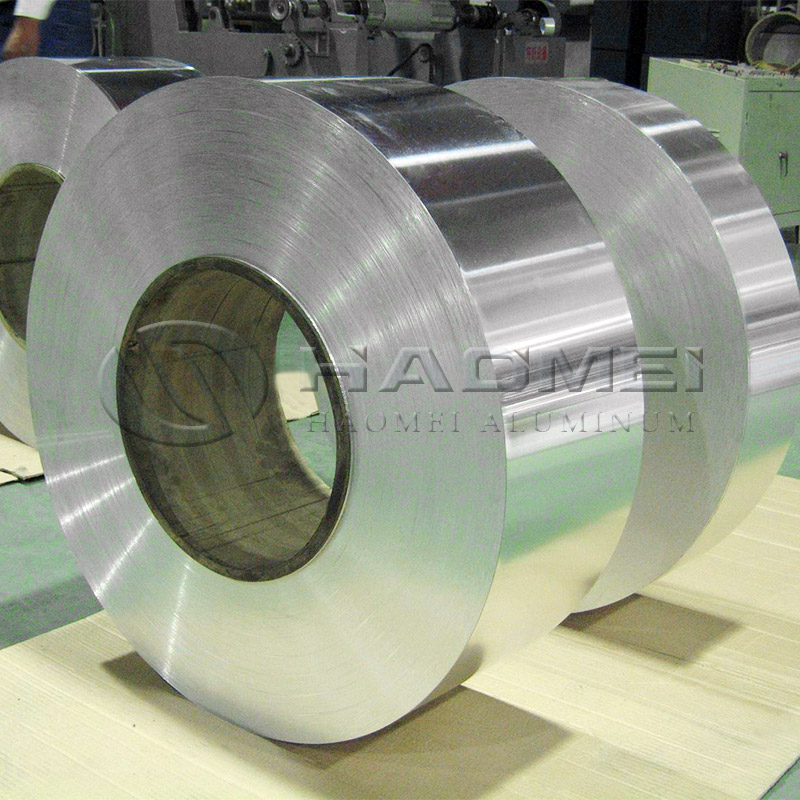

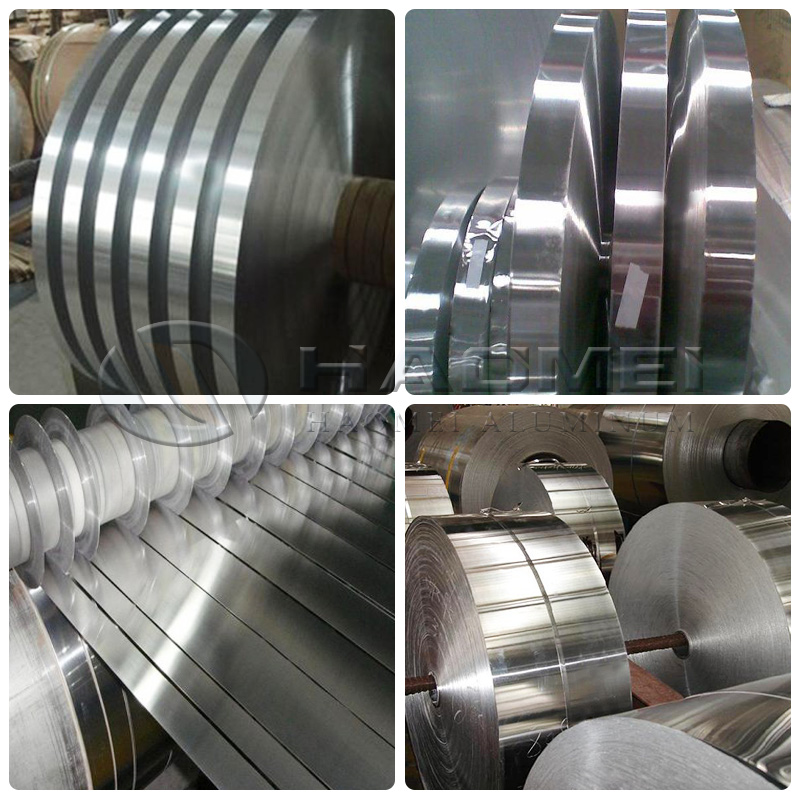

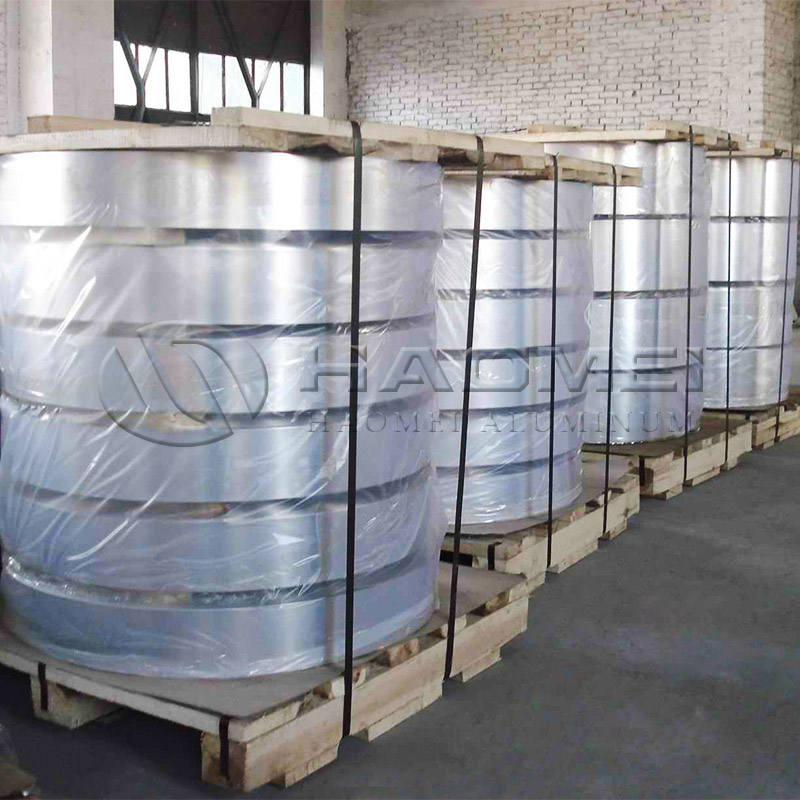

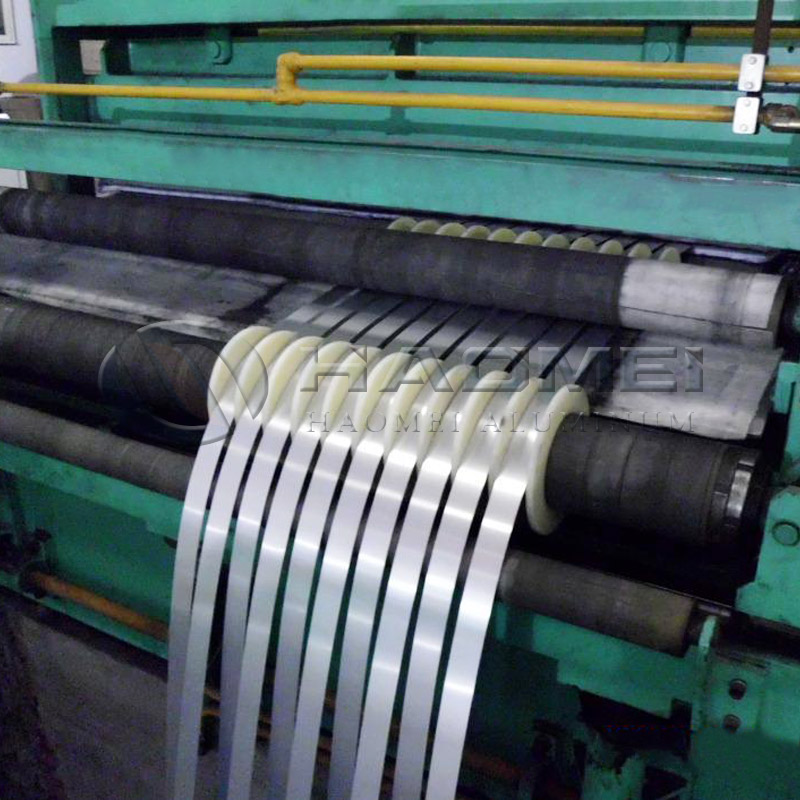

Photos of Aluminum Strip
