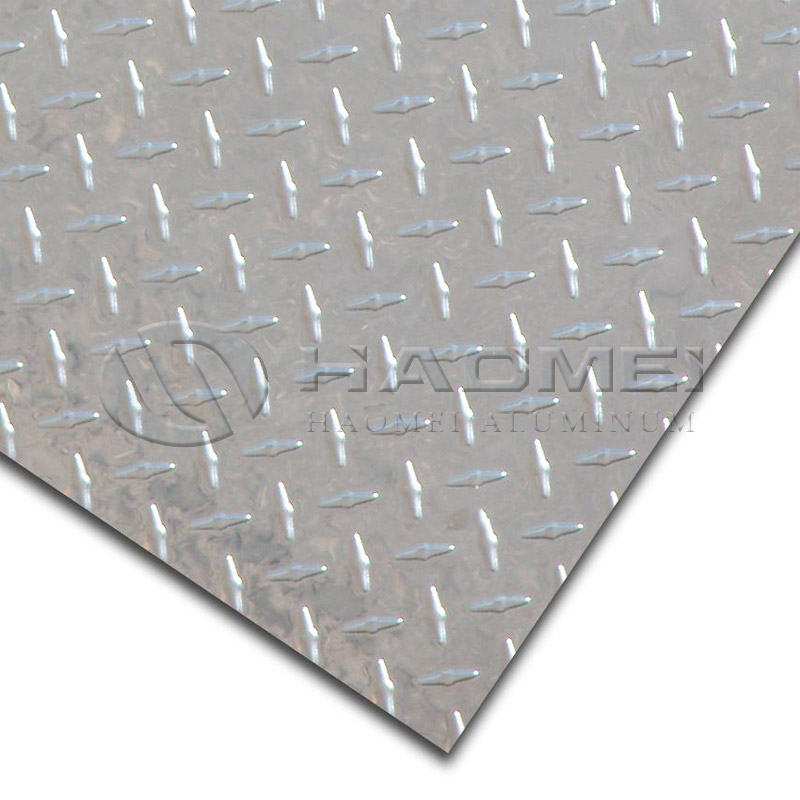

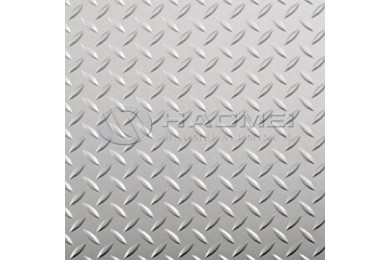

Aluminum Tread Plate

Introduction of Haomei Aluminum Tread Plate

Aluminum tread plates are widely used as antiskid plates in ship and auto building in the construction and transportation industries. The advantages of using aluminum tread plates instead of steel plates for antiskid is obvious, they are better for antirust and lighter; can be used for many years and retains high value after being replaced.

Specifications of Aluminum Tread Plate:

1) Grade: 1050, 1060, 1100, 3003, 3105, 5052, 5083, 5754, 6061, etc.

2) Thickness: 6.35mm max

3) Width: 1600mm max.

4) Length: 12000mm max.

5) Temper: H14/H154  H24/H254  H26/H274 H18/H194 H32/H334, etc.

6) Tread height: 1.0mm - 1.5mm

7) Tread length: 35mm - 50mm

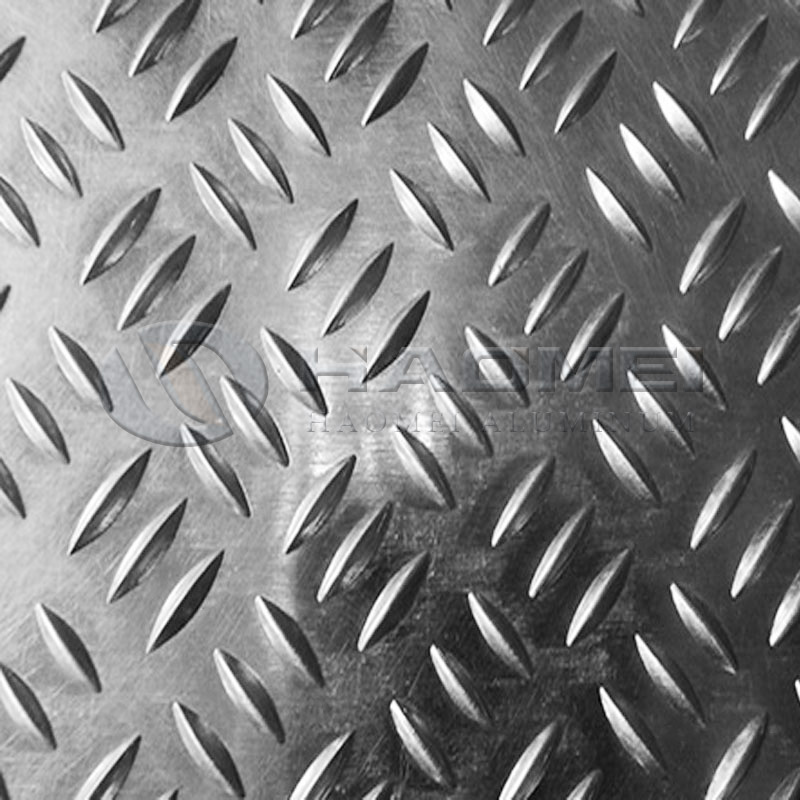

Pattern:

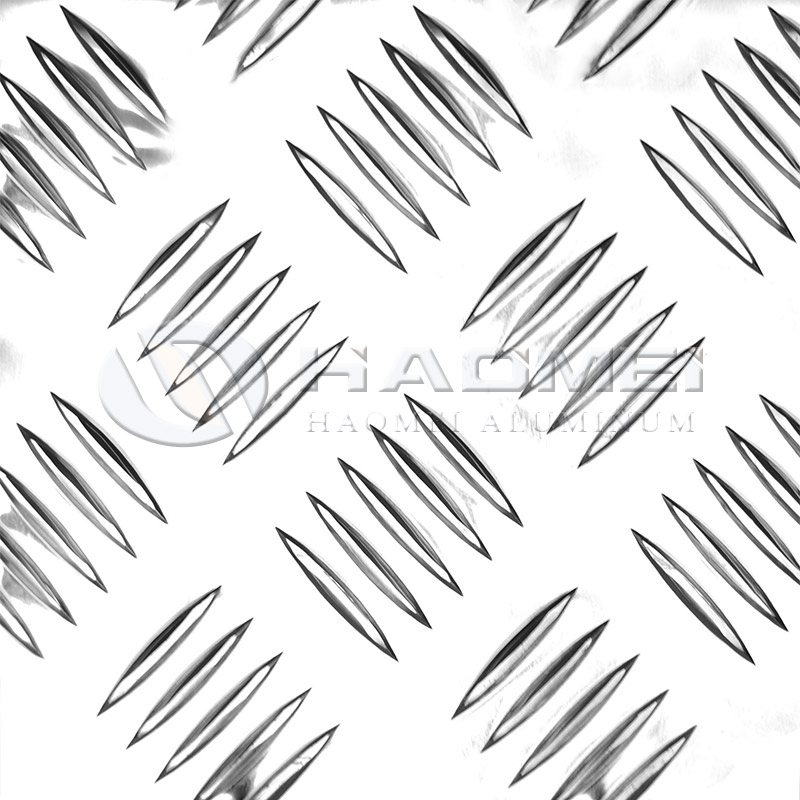

1) big 5 bar

2) small 5 bar

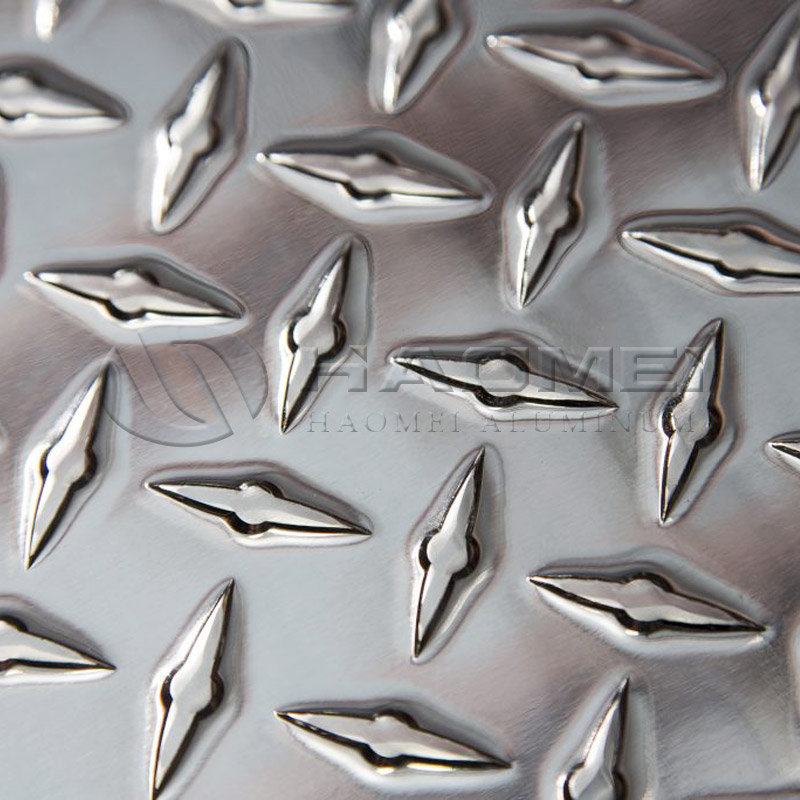

3) diamond

4) 3 bar

5) pointer, etc.

Applications of Aluminum Tread Plate:

1) Ship deck

2) Autos

3) Workshop floors

4) Building floors and steps

5) Antiskid floor of bus

6) Elevator

7) Treadboard

8) Stair tread

9) Vehicle step

 Features of Aluminum Tread Plate:

1) Light in weight

2) Convenient assembling

3) Disassembling
