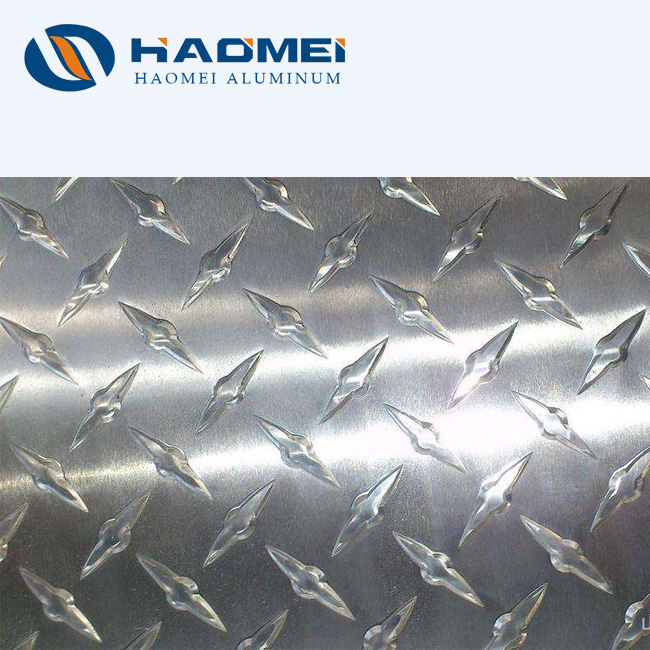

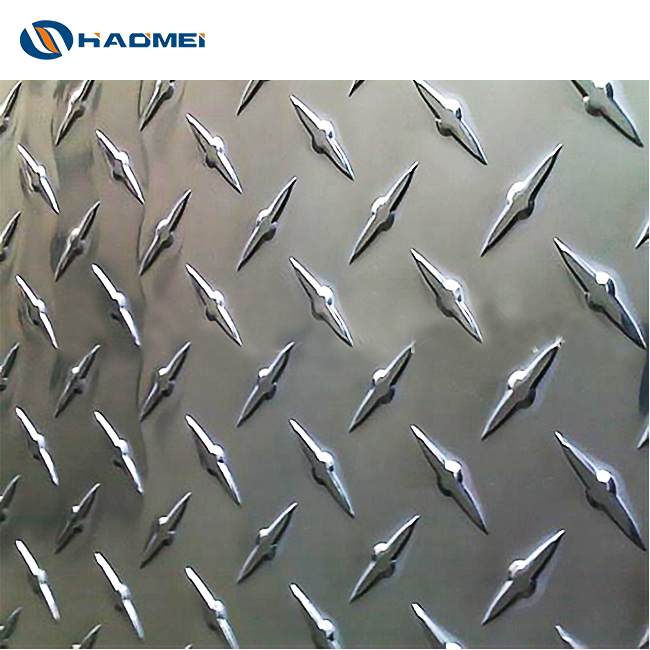

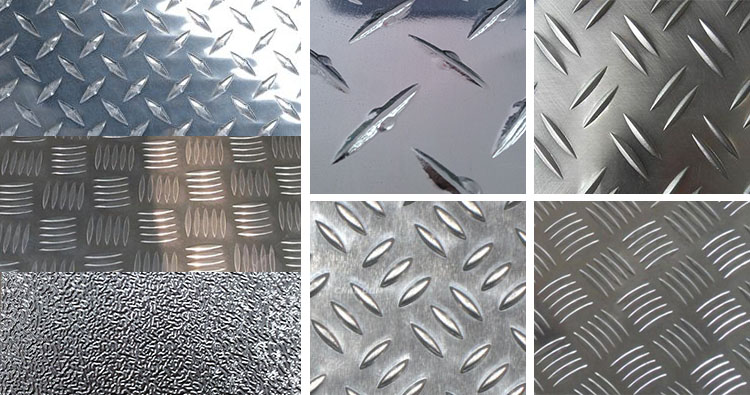

5754 aluminum tread plate is processed from 5754 aluminum plate which is featured by good corrosion resistance, hardness and rust resistance. It contains 3%-5% magnesium known by excellent erosion resistance, usually used in special places, such as ships and cabin lights in a humid environment. 5754 aluminum checker sheet has high hardness and a certain load-bearing capacity. The patterns can be divided into five-bar, diamond, stucco, lentil, spherical etc.
|
Temper |
H12, H22, H32, H14, H24, H34, T4, T6 |
|
Thickness (mm) |
1.2-8.0 |
|
Width (mm) |
100-1850 |
|
Length (mm) |
Coil or sheet (500-16000) |
|
Price |
Alu ingot price + manufacturing cost |
|
MOQ |
1 ton |
|
Pattern |
Diamond, 5 bar, 1 bar, 3 bar, 4 bar |
Chemical composition
|
Si |
Cu |
Mg |
Ti |
Zn |
Mn |
Cr |
Al |
|
0.40 |
0.10 |
2.6-3.6 |
0.15 |
0.2 |
0.50 |
0.30 |
rest |
Mechanical properties
|
Tensile Strength σb (MPa) |
Yielding Strength σb (MPa) |
Elongation |
|
190～240 |
≥80 |
≥1.2 |
Advantages
1. High purity. Composition of the 5754 plate is strictly controlled and no waste aluminium is allowed to be added.
2. High brightness and good anti-skid effect.
3. Long service life. The patterns are strong and durable even after long-term service.
4. Good after-sales service. Professional service team guarantees that your complaints will be responded in time.

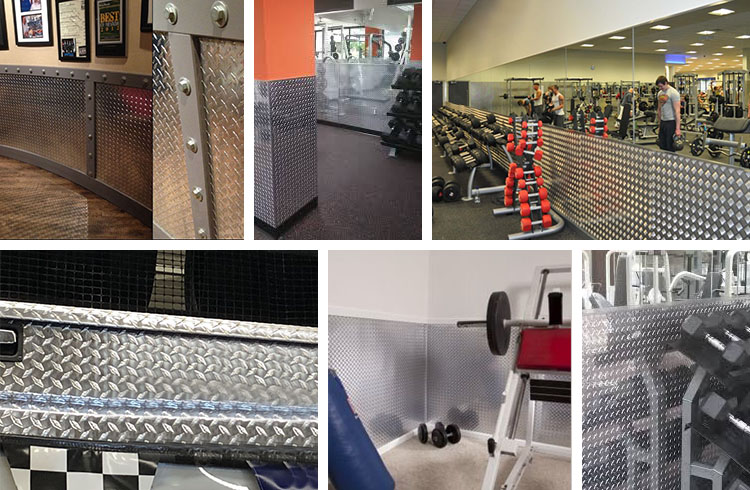

Application
Aluminium chequered plate 5754 has good corrosion resistance and hardness. The main purposes of 5754 aluminum tread plate are anti-skid and decoration. The plate is often used in special places such as cold storage, ships, carriages, and stairs. In addition, it is widely used in furniture, such as refrigerators, air conditioners, carriages, platforms, packaging pipes, screen frames, and various suspension beams. , Table legs, decorative strips, handles, cable troughs and covers, chair tubes, etc.
