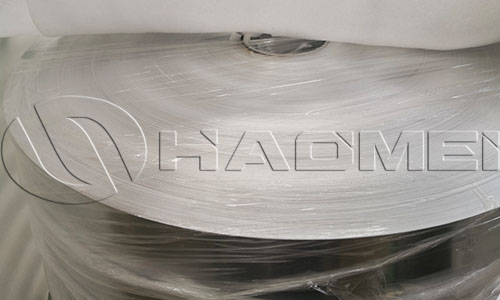

1060 aluminum strip for transformer winding

1060 aluminum strip for transformer winding is of O temper. The basic requirements for transformer winding materials are strong in insulation, mechanical hardness and heat resistance. The transformer winding refers to the circuit part of a transformer, made of copper wire or aluminum wire with high conductivity and is used in the power system. A winding consists of one or more coils. The windings of the low-frequency transformer are all wound with copper enameled wire. It has a primary winding and one or more secondary windings, which can achieve different voltage ratios or impedance ratios. The windings of high-frequency transformers need to have feedback windings. 1060 aluminum strip is used for the windings of high-frequency transformers.

1060 aluminum strip has good conductivity. In application as a transformer winding material, the strip can be treated with proper methods to obtain insulation property as a whole. The aluminium content of 1060 is 99.6%, indicating its hardness is weak among aluminium alloys, but it’s hard enough as a winding material. Furthermore, its tensile strength and elongation is high, making it suitable for hard winding. The heat resistance of 1060 aluminium strips is very high, reaching 1800℃. With these features, 1060 stand out of other alloys possibly applied to transformers. However, the integrated property of aluminium winding is not so good as copper winding, but the former wins by low price. The cost of aluminium winding proves to be much lower, which makes 1060 aluminum strip for transformer winding increasingly popular.

The thickness for transformer 1060 aluminium strips falls on several scopes, including 0.2-0.4mm, 0.4-0.8mm, 0.9-1.1mm, 1.2-1.6mm and 1.8-2.0mm, and the corresponding widths are respectively less than 100mm, 100-200mm, 201-500mm, 501-1250mm and 1250mm above. Haomei is a 14-year professional supplier of transformer aluminum strips. Welcome to contact us for a quotation.
