Technical features of Haomei aluminium round disc production line

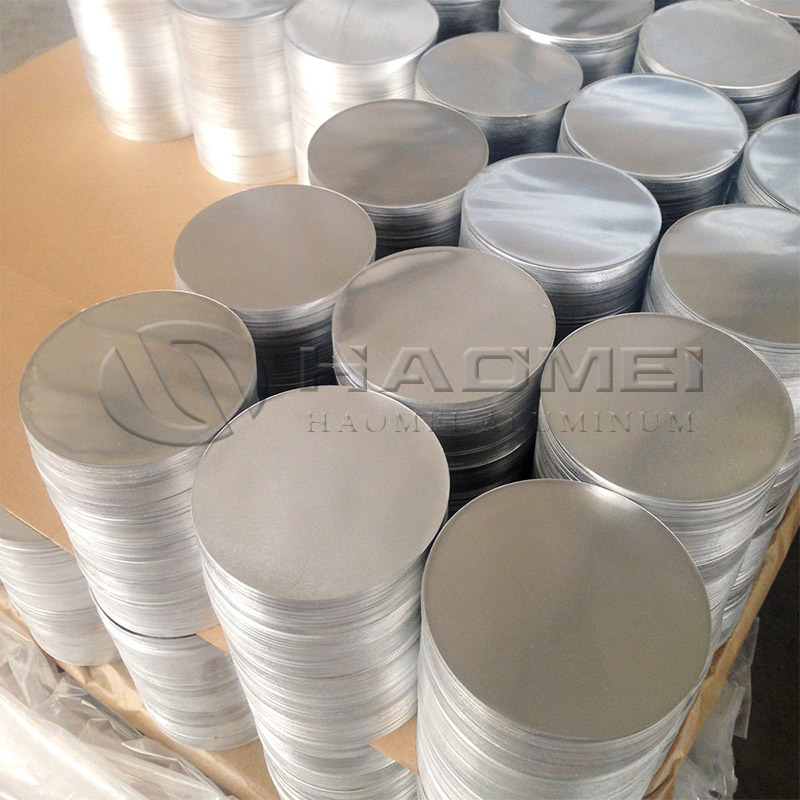

The automatic production line is designed and manufactured for the production enterprises and aluminum circle suppliers for cooking utensils, such as aluminum circle for cookwares, aluminum disc for lamps and so on. It can satisfy the production demand of a large number of aluminum circle billets in enterprises. This equipment can automatically select the suitable layout method according to the width of rolled material and the diameter of the aluminum circle blanks, and improve the material benefit. The utilization rate of materials is over 80%, far superior to other circular blanking methods. The main components of the equipment are: opening and leveling part, feeding and blanking part, finished product palletizing part, hydraulic system, electric control system and so on.

The technical features of the production line:

1, the numerical control is fully automatic, the production line starts from coiling until the whole material is finished, and no manual contact is needed in the middle of the whole material, without any adjustment, the hidden danger of production safety and the hidden trouble of product quality are eliminated fundamentally.

2. The line can be produced directly by the volume of the reel, without the longitudinal shear and cross cutting of the reel, reducing the production process, reducing the cost of production and reducing the possibility of the damage to the surface of the reel.

3, this line makes full use of the width of the reel and uses the high precision servo motor drive system to reduce the distance between the wafer and edge of the material. It reduces the waste quantity fundamentally and makes the utilization of the raw material more than 80%.

4, the production speed can reach 20-60 pieces per minute, which improves the production efficiency.

5, since modular design is adopted, the conversion time can be reduced to less than 15 minutes when the deep drawing aluminum circle production specifications are changed. The diameter range of the produced wafer ranges from 85mm to 700mm.

6, advanced open book system, six type leveling machine, high rigidity mechanical press and automatic palletizing system ensure the high quality of wafer products.
