Specifications
Alloy: 1060
Temper: H12. H14. H16. H18. H22. H24. H26. H32. H34. O
Thickness: 0.02mm to 10mm
Width: 10mm to 1400mm
Surface: Mill finish, coated;
U. T. S: 60-95N/mm2
Elongation: >25%
Max. Resistance in 20 degree: ≤ 0.02825Ω Mm2/m
Density in 20 degree: 2.703kg/dm3
Burr's height: 0.01--0.03mm vary with thickness of the strip
Collapsed side's height: 0.05--0.1mm
Surface: Free of oil,free of scratches
Packing: Eye to wall and eye to sky, wooden pallet and wooden case
Lead Time: Within 25 days
Customization: acceptable

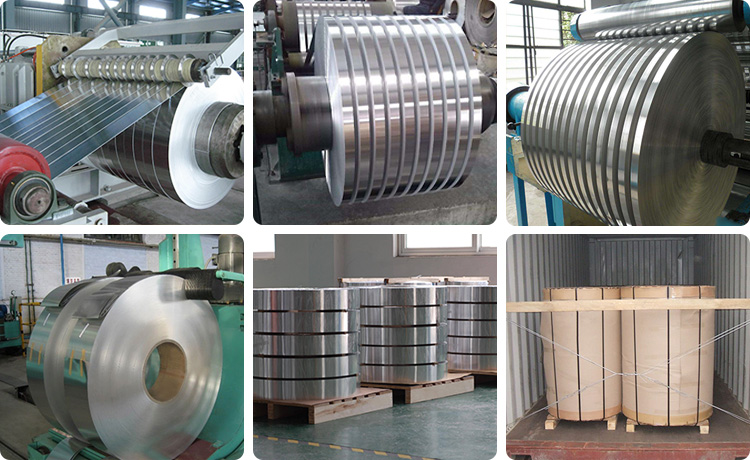

Production Process

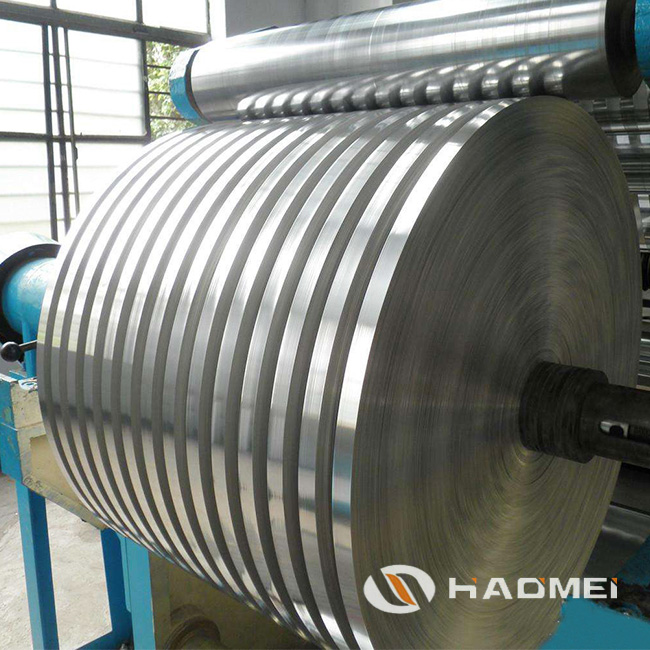

First step: raw material slitting
Aluminum strip raw material with Slitting equipment made into the width customers needs

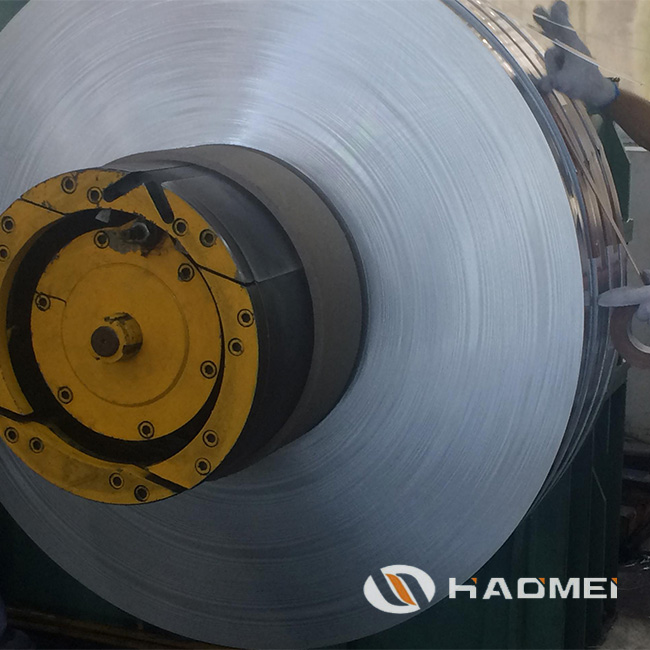

Second step: Aluminum strip winding
In order to ensure the quality of aluminum strip, the side treatment is made on the equipment
Third step: Aluminum strip fixed
The detection width and thickness deviation of the aluminum strip are in line with the technical requirements of the customer. A paper sleeve is added to the scrolls and the aluminum strip piles are further fixed with glass fiber tape.
Application
1060 aluminum strip is used for cable, cosmetic cap, aluminum composite pipe, aluminum hose or tube, electrical transformer, shutter, aluminum battery and so on.
Especially 1060 aluminum strip can be used for low or high voltage transformer winding, high frequency transformer, step up or down voltage transformer etc.
